Medium Diaphragm Paint Pump

Product Name : Medium Diaphragm Paint Pump
Model : DPS-90E

Q'ty :
Enlargement



Products

Medium Diaphragm Paint Pump
DPS-90E Series

Product Features：

  • Ideal for customers with a daily paint usage of over 40 liters.
  • Widely used not only for manual pressure delivery and spraying but also for reciprocating spray machines, automatic painting machines, and paint robots.
  • The mixer shown in the images is an optional accessory.
  • The paint tank is not included.
  • The liftable paint diaphragm pump does not come with a paint tank.
Technical Data

Model
DPS-90E
DPS-90EN
Type
General Type
Stainless Steel Standard
Overall Dimensions (W × D × H)
350×360×780mm
350×360×780mm
Weight
7kg
9kg
Air Supply Port
G1/4 (PF1/4 male)
G1/4 (PF1/4 male)
Paint Outlet Port
G1/4 (PF1/4 male)
G1/4 (PF1/4 male)
Max Cycles
200 cycles/min
200 cycles/min
Max Output
10L/min
10L/min
Max Paint Viscosity
100 seconds or less/NK-2
100 seconds or less/NK-2
Pressure Adjustment Range
0~5.9Bar
0~5.9Bar
Max Flow Rate
2L/min
2L/min
Air Pressure Range
0.15~6.9Bar
0.15~6.9Bar
Compatible Mixer
-
-

Model

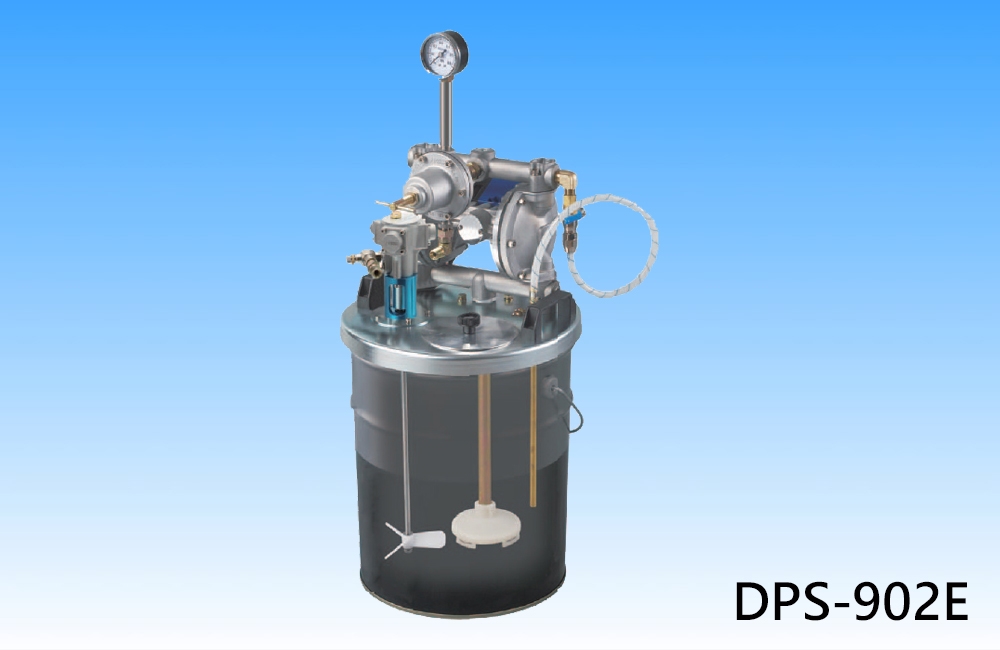

DPS-902E
DPS-90LE
Type
Tank Type (with 20L container)
Liftable Frame Type with 18L Angle Tank
Overall Dimensions (W × D × H)
330×340×780mm
260×390×823mm
Weight
10kg
17kg
Air Supply Port
G1/4 (PF1/4 male)
G1/4 (PF1/4 male)
Paint Outlet Port
G1/4 (PF1/4 male)
G1/4 (PF1/4 male)
Max Cycles
200 cycles/min
200 cycles/min
Max Output
10L/min
10L/min
Max Paint Viscosity
100 seconds or less/NK-2
100 seconds or less/NK-2
Pressure Adjustment Range
0~5.9Bar
0~5.9Bar
Max Flow Rate
2L/min
2L/min
Air Pressure Range
0.15~6.9Bar
0.15~6.9Bar
Compatible Mixer
AMM-721B (optional)
AMM-721B (optional)

Model
DPS-904E

Type
Wall-mounted

Overall Dimensions (W × D × H)
260×340×15603mm

Weight
6.5kg

Air Supply Port

Paint Outlet Port

Max Cycles

Max Output

Max Paint Viscosity

Pressure Adjustment Range

Max Flow Rate

Air Pressure Range
0.15~6.9Bar

Compatible Mixer
