1" Pneumatic Double Diaphragm Pump

Product Name : 1" Pneumatic Double Diaphragm Pump
Model : DS10-PPL

Q'ty :
    Enlargement



    Products

    1-Inch Fully Plasticized PP Pneumatic Double Diaphragm Pump
    DS10-PPL

    This pump can be used with most acidic and alkaline liquids but is not suitable for certain strong acids and bases, such as nitric acid, aqua regia, organic solvents, and gasoline. It is available in two flange types: Japanese standard (F) and American standard (L).


    proimages/products/DS10-PPF/DS10-PPL-XXXX-03(1).jpg
    proimages/products/DS10-PPF/DS10-PPF-XXXX-03(1).jpg

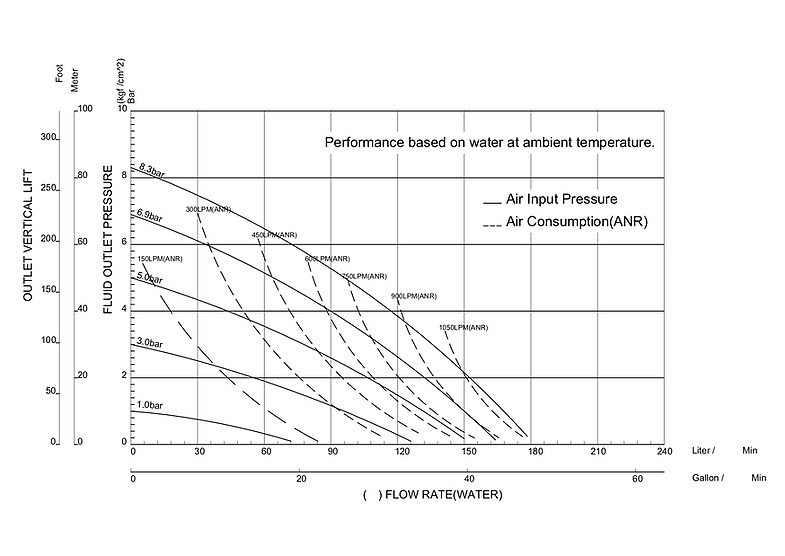

    proimages/products/DS10-PAL/DS10-PAL流量曲線圖.jpg
    Technical Data

    Diaphragm Material

    UPE(U) -5°C to +50°C
    TFM(T) -30°C to +130°C
    Santoprene(O)  0°C to +80°C
    Fluid Contact Material
    PP
    Fluid Outlet Diameter
    L: ANSI 150R.F Ø110m/m
    F: JIS B 2211-197；5kg/cm² Ø25m/m
    Gas Inlet Diameter
    3/8" PT
    Gas Outlet Diameter
    1/2" PT
    Minimum Working Pressure
    0.5 Bar (kgf/cm²) ； 7.25 psi
    Maximum Working Pressure
    7.0 Bar (kgf/cm²) ； 120 psi
    Optimal Working Pressure
    1.5~3.5 Bar (kgf/cm²) ；21.75~50.76 psi
    Average Output Volume
    650 ml/cycle
    Maximum Allowable Particle Size
    Ø3 mm or smaller
    Maximum Air Consumption
    1150 LPM. ; 40.61 SCFM
    Inlet Lift (Depth)
    6.7 m
    Maximum Flow Rate
    110LPM ； 29.06 GPM
    Packing Dimensions
    (L) 35 cm x (W) 25 cm x (H) 50 cm
    Weight
    7.3 Kg
