Glue Spray Scraper

Product Name : Glue Spray Scraper
Model : MKDD-FL

Q'ty :
Enlargement



Products

Glue Spray Scraper
MKDD/FL

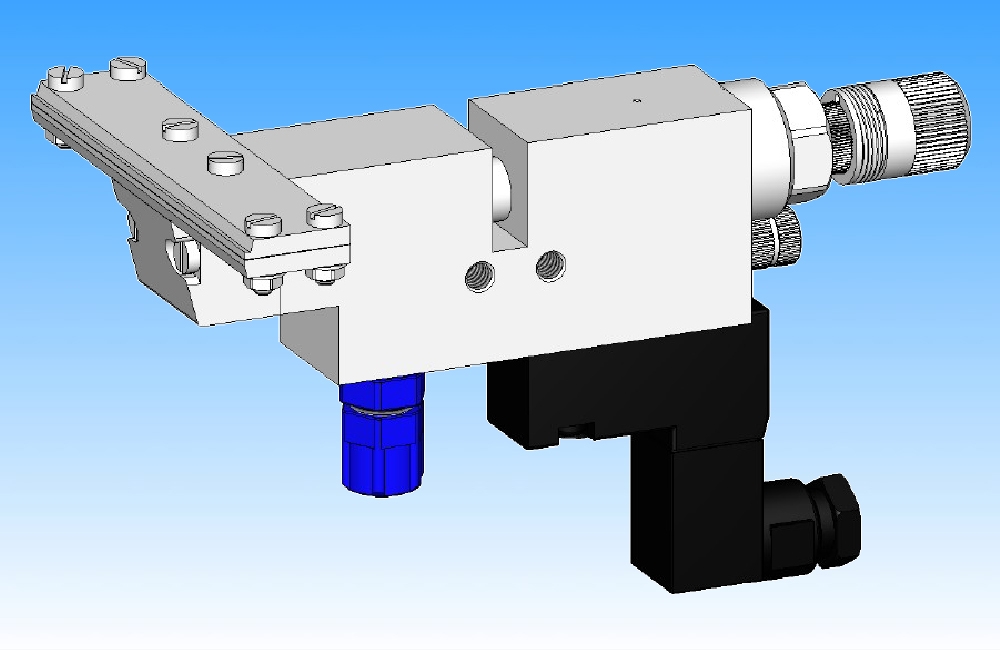

The MKDD-FL automatic glue scraper valve is an efficient and precise electronically controlled pneumatic spray machine designed for surface spraying of various adhesives and glues. Whether for manufacturing paper shopping bags or window envelopes, the MKDD-FL reliably delivers high-quality spraying results. Its scraping width is adjustable, ranging from 10 to 80 millimeters, allowing you to easily meet various needs. Additionally, the scraper blade design within the scraper allows users to quickly change the width and style of the application, ensuring optimal results with each operation. Choosing the MKDD-FL means selecting the perfect combination of precision and efficiency. Stainless steel versions are also available.

proimages/products/MKDD-FL/MKDD-FL-2.png

Technical Data
Model
MKDD-FL
Control Air Pressure
5 - 6 bar
Glue Pressure
max. 10 bar
Weight
530g
Ordering Information
Glue Scraper Valve Number
Scraper Valve (Width x Gap)
212241
10 x 0.3 mm
212115
20 x 0.1 mm
212388
22 x 0.05 mm
211824
22 x 0.1 mm
212254
22 x 0.2 mm
210187
22 x 0.3 mm
210186
22 x 0.5 mm
210184
25 x 0.3 mm
210185
25 x 0.5 mm
212253
35 x 0.2 mm
210209
35 x 0.3 mm
210529
35 x 0.5 mm
210206
44 x 0.3 mm
212320
56 x 0.3 mm
211834
80 x 0.1 mm
211820
80 x 0.3 mm
