Economy / below discharge

Product Name : Economy / below discharge
Model : PT-EFGSS

Q'ty :
    Enlargement



    Products

    Product Image  proimages/products/PT-2E(FG)-SS/PT-2E(FG)-SS-800x800.jpg  proimages/products/PT-5E(FG)-SS/PT-5E(FG)-SS-800x800.jpg proimages/products/PT-10E(FG)-SS/PT-10E(FG)-SS-800x800.jpg
    Model PT-2E(FG)-SS PT-5E(FG)-SS PT-10E(FG)-SS
    Volume 2L 4L 10L
    Fluid Outlet 1/4"psf×1 1/4"psf×1 3/4"psm×1
    Max. Air Pressure 4.1 bar / 60 psi 4.1 bar / 60 psi 4.1 bar / 60 psi
    Material SUS304 SUS304 SUS304
    Inner Tank - - -

    Tank Lid

    (T×I.D.×O.D.)

    		 3.5×174×183mm 3.5×174×183mm 3.5×280×289mm

    Tank body

    (T×H×I.D.×O.D.)

    		 2×259×159×163mm 2×294×159×163mm 2×260×264×268mm

    Specification

    (L×W×H)

    		 230×210×496mm 230×210×531mm 290×310×621mm
    Net/Gross/CUFT 5.6kg×6.5kg×1' 5.9kg×6.8kg×1' 13.4kg×14.6kg×2'

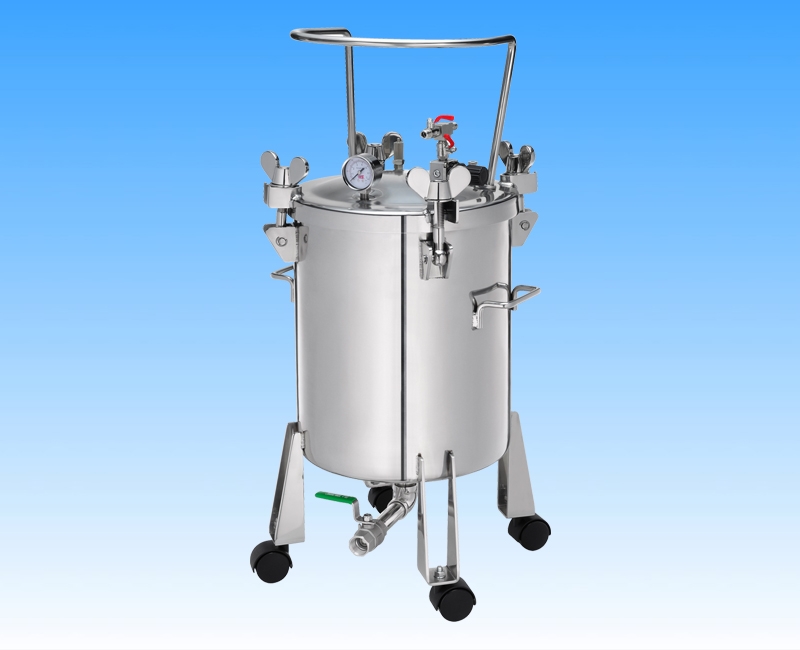

    Product Image proimages/products/PT-20E(FG)-SS/PT-20E(FG)-SS-800x800.jpg  proimages/products/PT-50E(FG)-SS/PT-50E(FG)-SS-800x800.jpg   proimages/products/PT-80E(FG)-SS/PT-80E-SS-800x800-藍色底圖.jpg
    Model PT-20E(FG)-SS PT-50E(FG)-SS PT-80E(FG)-SS
    Volume 20L 50L 80L
    Fluid Outlet 3/4"psm×1 3/4"psm×1 3/4"psm×1
    Max. Air Pressure 4.1 bar / 60 psi
    Material SUS304
    Inner Tank -

    Tank Lid

    (T×I.D.×O.D.)

    		 5×333×345mm

    Tank body

    (T×H×I.D.×O.D.)

    		 2×440×318×322mm

    Specification

    (L×W×H)

    		 350×405×852mm
    Net/Gross/CUFT 19.1kg×21.2kg×4.5'

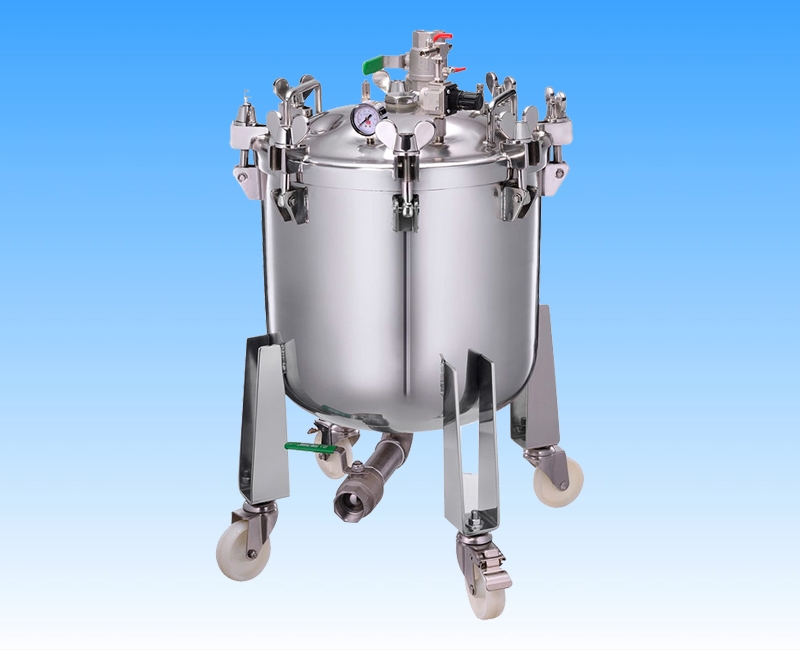

    Product Image proimages/products/PT-100E(FG)-SS/PT-100E-SS-800x800-藍色底圖.jpg   proimages/products/PT-120E(FG)-SS/PT-120E(FG)-SS-800x800-藍色底圖.jpg
    Model PT-100E(FG)-SS PT-120E(FG)-SS
    Volume 100L 120L
    Fluid Outlet 3/4"psm×1 3/4"psm×1
    Max. Air Pressure
    Material
    Inner Tank

    Tank Lid

    (T×I.D.×O.D.)



    Tank body

    (T×H×I.D.×O.D.)



    Specification

    (L×W×H)


    Net/Gross/CUFT
