Economy / top discharge
Product Name : Economy / top discharge
Model : PT-ESS
Enlargement
Products
| Product Image |
 |
 |
 |
| Model |

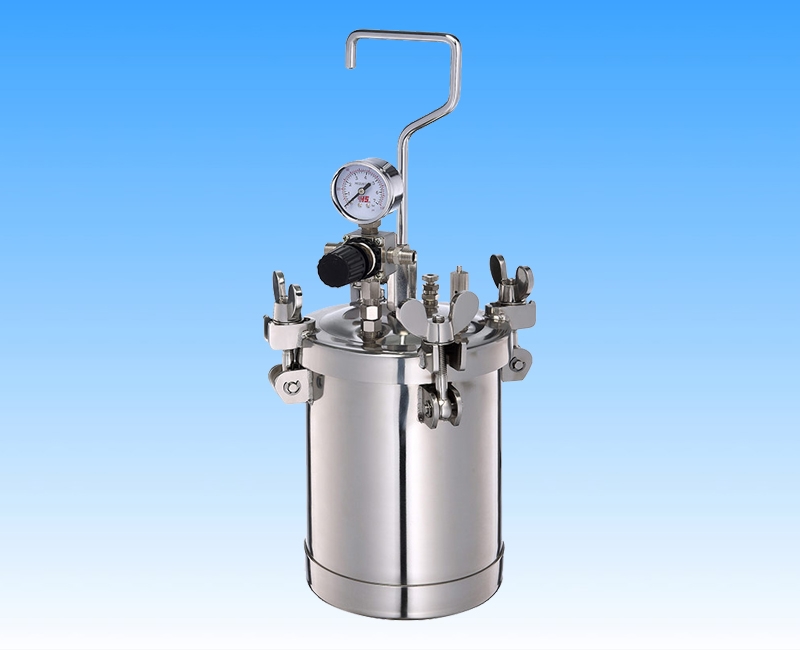

PT-2E-SS |
PT-5E-SS |

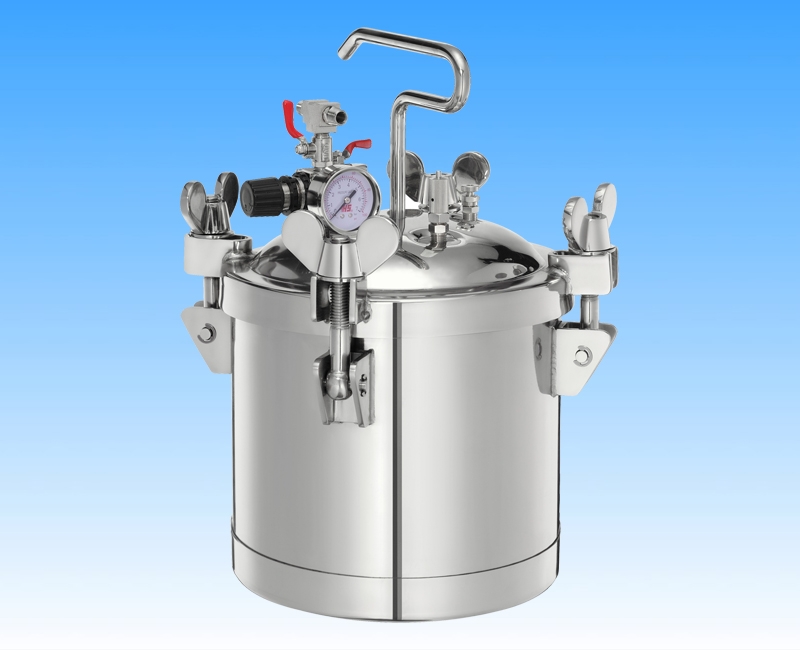

PT-10H-SS |
| Volume |
2L |
4L |
10L |
| Fluid Outlet |
1/4"psf×1 |
1/4"psf×1 |
1/4"psf×1 |
| Max. Air Pressure |
4.1 bar / 60 psi |
4.1 bar / 60 psi |
4.1 bar / 60 psi |
| Material |
SUS304 |
SUS304 |
SUS304 |
| Inner Tank |
- |
- |
- |
|
Tank Lid
(T×I.D.×O.D.)
|
3.5×174×183mm |
3.5×174×183mm |
3.5×280×289mm |
|
Tank body
(T×H×I.D.×O.D.)
|
2×180×159×163mm |
2×221×159×163mm |
2×264×268×239mm |
|
Specification
(L×W×H)
|
190×210×444mm |
190×210×488mm |
290×290×436mm |
| Net/Gross/CUFT |
5.2kg×5.8kg×0.7' |
5.3kg×6kg×0.7' |
11.9kg×12.9kg×1.6' |
| Product Image |
 |
 |
 |
| Model |

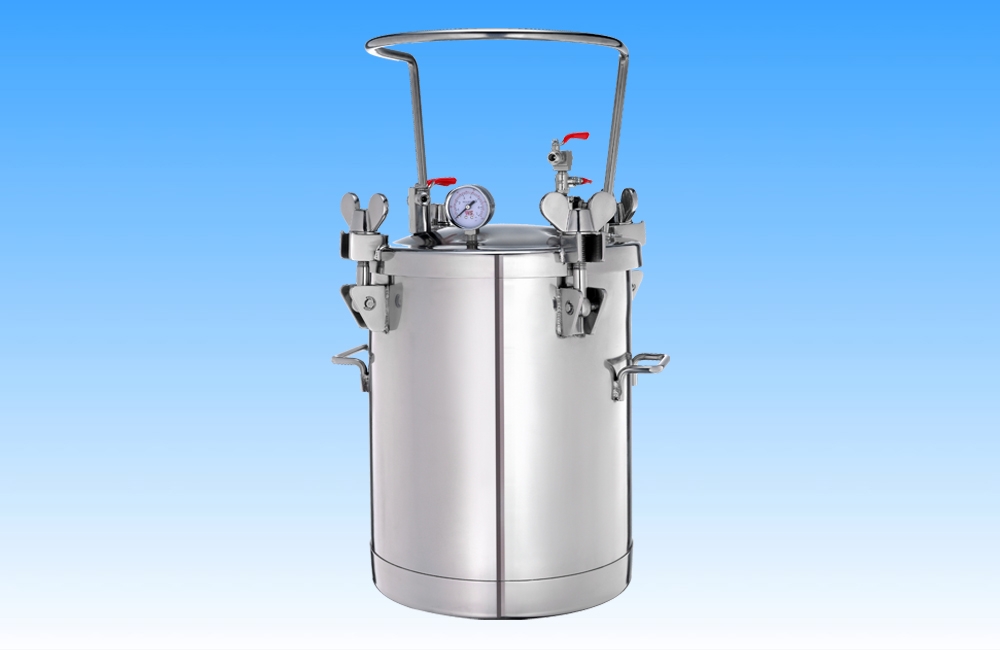

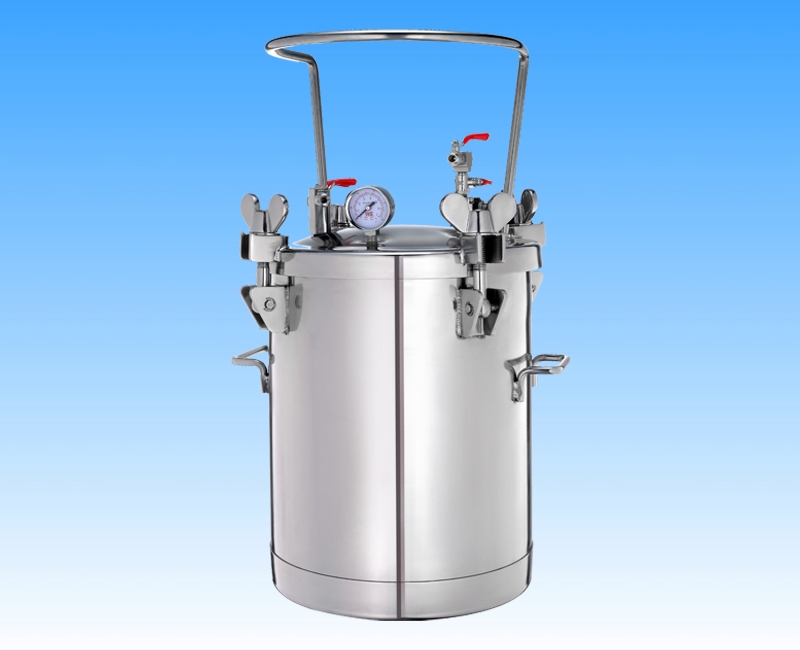

PT-20H-SS |

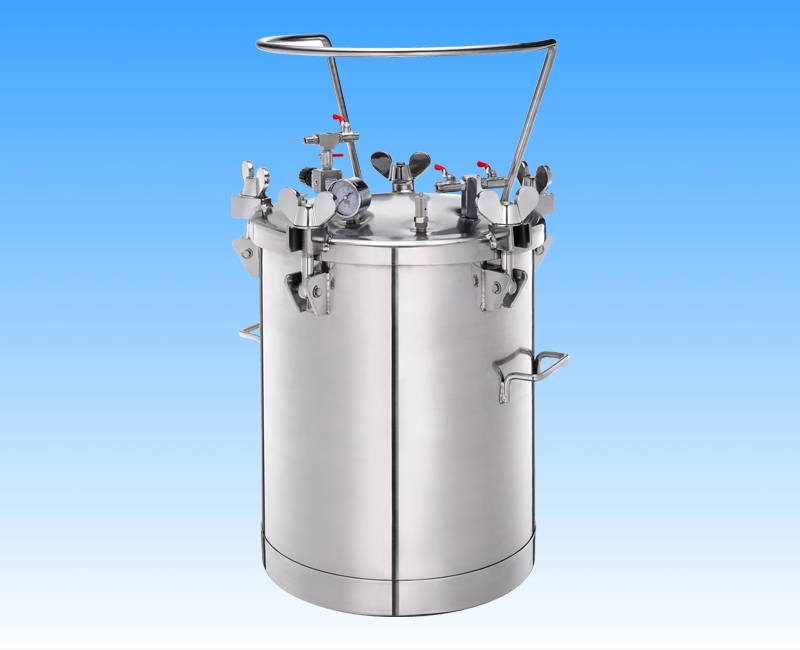

PT-50H-SS |

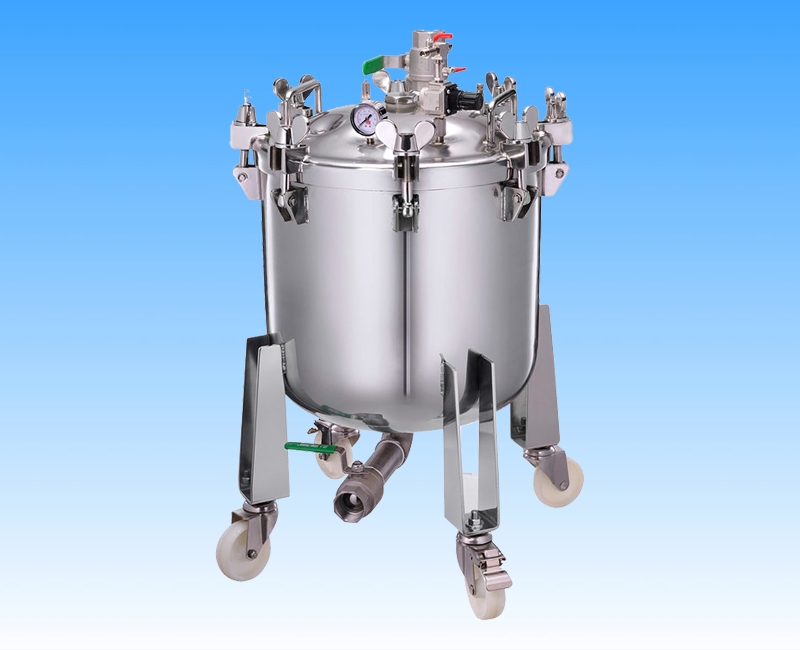

PT-80E-SS |
| Volume |
20L |
50L |
80L |
| Fluid Outlet |
1/4"psf×1 |
1/4"psf×1 |
3/4"psm×1 |
| Max. Air Pressure |
4.1 bar / 60 psi |
4.1 bar / 60 psi |
4.1 bar / 60 psi |
| Material |
SUS304 |
SUS304 |
SUS304 |
| Inner Tank |
- |
- |
- |
|
Tank Lid
(T×I.D.×O.D.)
|
5×333×345mm |
5×389×400.m |
|
|
Tank body
(T×H×I.D.×O.D.)
|
2×413×318×322mm |
2×497×369×373mm |
|
|
Specification
(L×W×H)
|
350×405×675mm |
425×452×775mm |
|
| Net/Gross/CUFT |
19.1kg×21.1kg×3.7' |
23.9kg×26.7kg×6.8' |
|
| Product Image |
 |
 |
|
| Model |
PT-100E-SS |
PT-120E-SS |
|
| Volume |
100L |
120L |
|
| Fluid Outlet |
3/4"psm×1 |
3/4"psm×1 |
|
| Max. Air Pressure |
4.1 bar / 60 psi |
4.1 bar / 60 psi |
|
| Material |
SUS304 |
SUS304 |
|
| Inner Tank |
- |
- |
|
|
Tank Lid
(T×I.D.×O.D.)
|
|
|
|
|
Tank body
(T×H×I.D.×O.D.)
|
|
|
|
|
Specification
(L×W×H)
|
|
|
|
| Net/Gross/CUFT |
|
|
|
