Y-Strainer

Product Name : Y-Strainer
Model : Y-strainer

Q'ty :
    Enlargement



    Products

    Y-strainer

    The Y-type filter is made of stainless steel 316 (CF8M) material and features an integrated valve seat. It is able to withstand pressures of up to 200 psi (14 bar) and comes equipped with a discharge hole for easy and quick replacement of the filter screen. The standard filter screen size is 20 mesh, with additional options of 40 mesh and 100 mesh available.

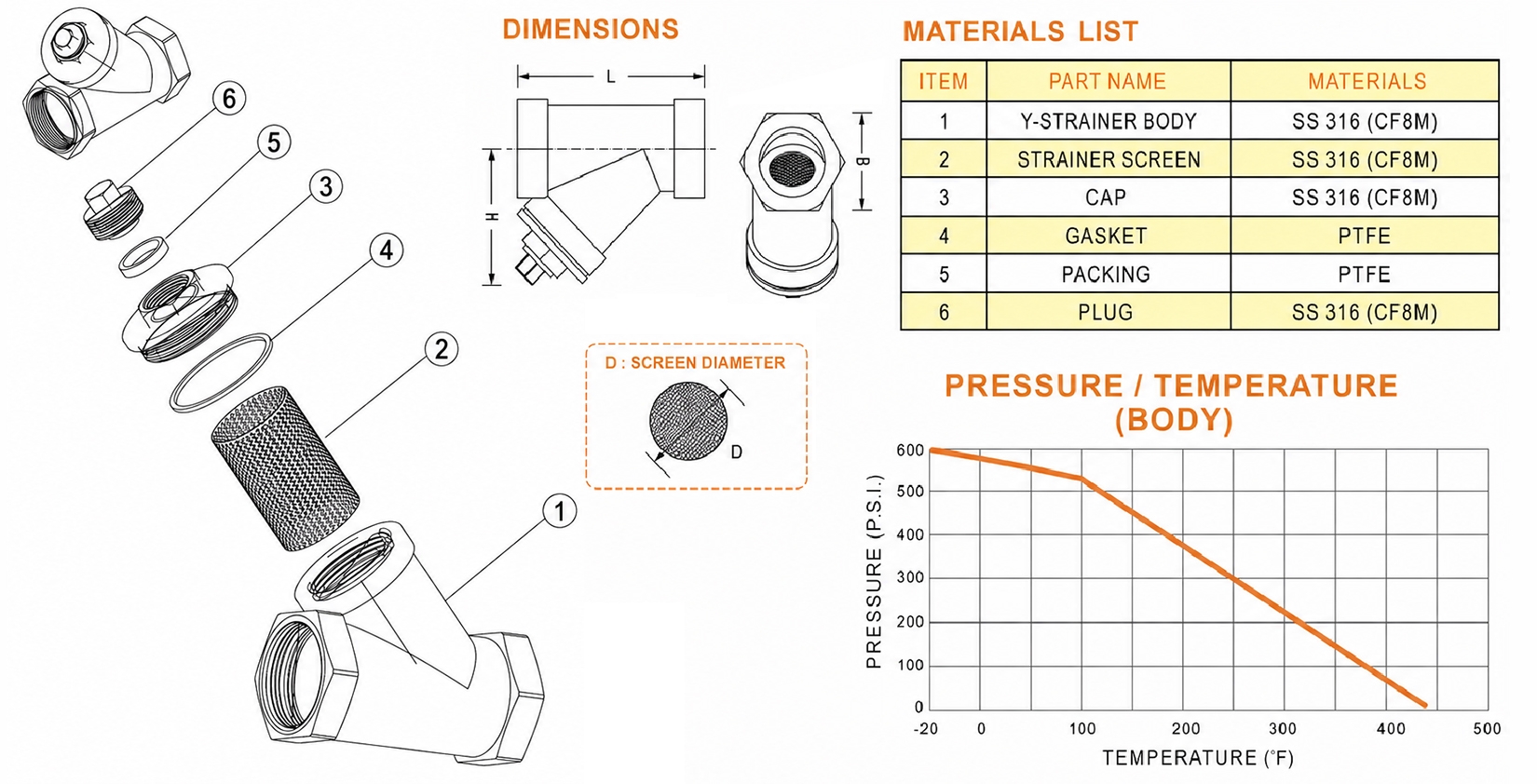

    proimages/products/Y-Strainer/Y-Strainer_data.jpg
    Technical Data
    Model
    Size PT
    Dimensions mm
    Weight kg
    Y-1/4
    1/4"
    L57×H32×D10
    0.25
    Y-3/8
    3/8"
    L57×H32×D10
    0.25
    Y-1/2
    1/2"
    L61×H37×D15
    0.28
    Y-3/4
    3/4"
    L70×H41×D20
    0.4
    Y-1
    1"
    L86×H47×D20
    0.6
    Y-11/4
    1-1/4"
    L100×H54×D25
    0.9
    Y-11/2
    1-1/2"
    L111×H62×D38
    1.15
    Y-2
    2"
    L138×H76×D51
    1.65
    Y-21/2
    2-1/2"
    L170×H110×D65
    3.6
    Y-3
    3"
    L195×H130×D80
    5
    Order Information
    Assembly Number
    Size PT
    Mesh Count
    Filter Mesh Number
    Y-1/4-20
    1/4"
    20
    Y-1/4-20F
    Y-1/4-60
    60
    Y-1/4-60F
    Y-1/4-100
    100
    Y-1/4-100F
    Y-3/8-20
    3/8"
    20
    Y-3/8-20F
    Y-3/8-60
    60
    Y-3/8-60F
    Y-3/8-100
    100
    Y-3/8-100F
    Y-1/2-20
    1/2"
    20
    Y-1/2-20F
    Y-1/2-60
    60
    Y-1/2-60F
    Y-1/2-100
    100
    Y-1/2-100F
    Y-3/4-20
    3/4"
    20
    Y-3/4-20F
    Y-3/4-60
    60
    Y-3/4-60F
    Y-3/4-100
    100
    Y-3/4-100F
    Y-1-20
    1"
    20
    Y-1-20F
    Y-1-60
    60
    Y-1-60F
    Y-1-100
    100
    Y-1-100F
    Y-11/4-20
    1-1/4"
    20
    Y-11/4-20F
    Y-11/4-60
    60
    Y-11/4-60F
    Y-11/4-100
    100
    Y-11/4-100F
    Y-11/2-20
    1-1/2"
    20
    Y-11/2-20F
    Y-11/2-60
    60
    Y-11/2-60F
    Y-11/2-100
    100
    Y-11/2-100F
    Y-2-20
    2"
    20
    Y-2-20F
    Y-2-60
    60
    Y-2-60F
    Y-2-100
    100
    Y-2-100F
    Y-21/2-20
    2-1/2"
    20
    Y-21/2-20F
    Y-21/2-60
    60
    Y-21/2-60F
    Y-21/2-100
    100
    Y-21/2-100F
    Y-3-20
    3"
    20
    Y-3-20F
    Y-3-60
    60
    Y-3-60F
    Y-3-100
    100
    Y-3-100F
